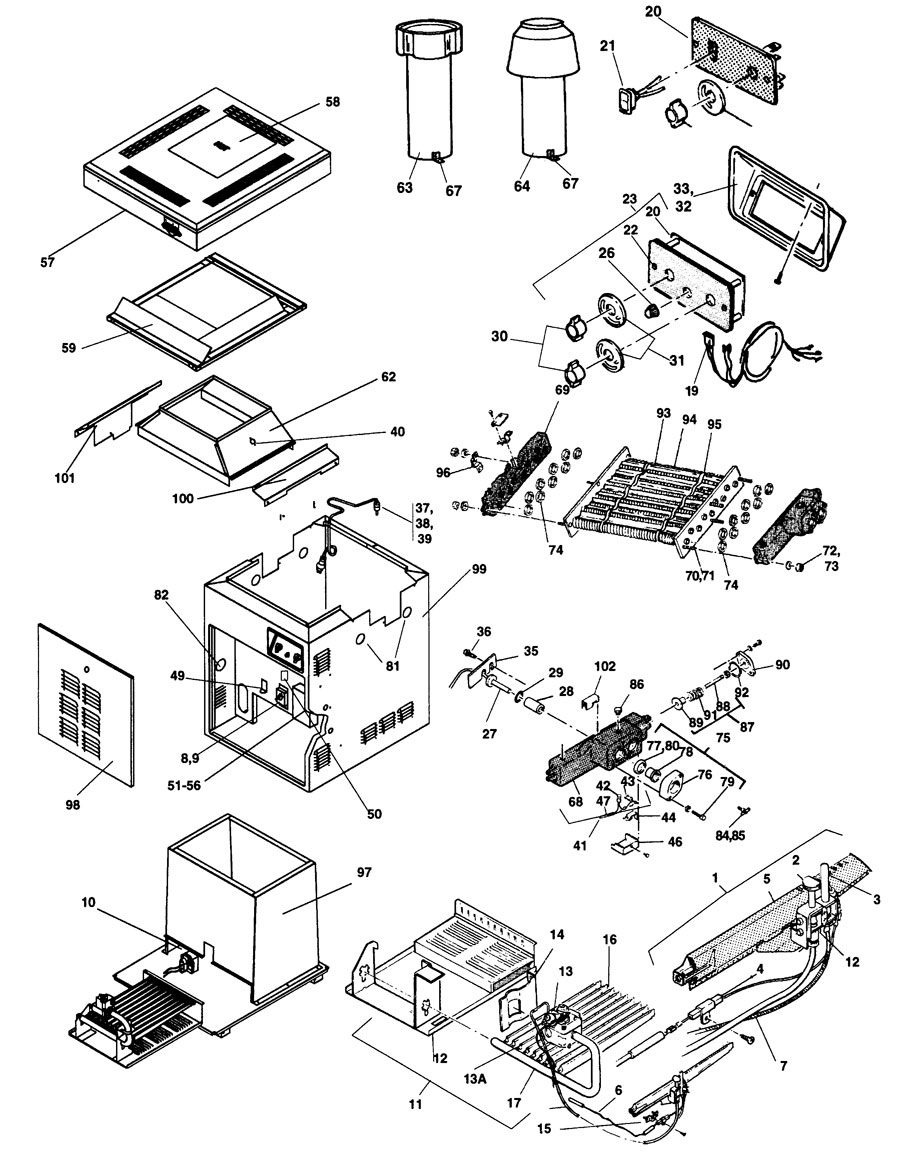

Swimming Pool Heaters - Waterpik Laars Lite & Laars Lite 2
%20&%20Lite%202%20(Mfg%202000-present)%20--%20Blow%20Up.jpg)
| Item | Key | Retail | Price | Quantity | |
| 47-295-1484 - Nut, 3/8 - 16, Hex - F0003100 | 73 | $3.34 | $1.67 |
|
|
| 47-295-1482 - Washer, Plain, 3/8'' - F0011100 | 72 | $3.34 | $1.67 |
|
|
| 47-295-1450 - TEMP-LOK Stop Plate - 10583100 | 31 | $3.34 | $1.67 |
|
|
| 47-295-1416 - Temp Control Bulb ''O''-Ring - E0116400 | 29 | $3.98 | $1.99 |
|
|
| 47-295-1480 - Dome Bolt, 2-½'' - F0046100 | 71 | $4.64 | $2.32 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 | 92 | $5.30 | $2.65 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 | 13A | $5.32 | $2.66 |
|
|
| 47-295-1524 - Gas Orifice, LP, 0K to 5K Ft. - L0032900 | 13A | $5.32 | $2.66 |
|
|
| 47-295-1120 - Thermostat Sleeve - 10444900 | 28 | $5.32 | $2.66 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 | 89 | $10.60 | $5.30 |
|
|
| 47-295-1458 - High Limit Switch Retainer Clip - 10728500 | 44 | $10.60 | $5.30 |
|
|
| 47-295-1360 - Flange Gasket, 1 ½''-2'' - S0078100 | 80 | $11.30 | $5.65 |
|
|
| 47-295-1460 - High Limit Switch Retainer Boot - S0098900 | 45 | $11.90 | $5.95 |
|
|
| 47-295-1292 - Flange Sleeve, 2'' - S0078200 | 78 | $12.56 | $6.28 |
|
|
| 47-295-1118 - Thermostat Knob - R0010700 | 30 | $12.56 | $6.28 |
|
|
| 47-295-1452 - Temperature Control Gasket - S0070000 | 32 | $13.06 | $6.53 |
|
|
| 47-295-1486 - Grommet Kit - R0316300 | 81 | $13.88 | $6.94 |
|
|
| 47-295-1504 - By Pass Spring, 2” Header, Black, 400 - S0070100 | 91 | $15.88 | $7.94 |
|
|
| 47-295-1434 - High Voltage Lead Assembly - R0099000 | 6 | $21.84 | $10.92 |
|
|
| 47-295-1418 - Knob, Single Bar - R0099900 | 26 | $21.84 | $10.92 |
|
|
| 47-295-1316 - Fusible Link (ALT) - R0012200 | 48 | $21.84 | $10.92 |
|
|
| 47-295-1456 - Redundant High Limit Elimination Instr.Kit(No High Limit) - R0337400 | 40 | $22.48 | $11.24 |
|
|
| 47-295-1502 - By Pass Spring, Blue - S0061200 | 91 | $23.20 | $11.60 |
|
|
| 47-295-1500 - By Pass Spring, Red - S0061300 | 91 | $23.20 | $11.60 |
|
|
| 47-295-1498 - By Pass Spring, White (EG-175) - S0061400 | 91 | $23.20 | $11.60 |
|
|
| 47-295-1496 - By Pass Spring, 2” Header, Purple, 125 - S0079900 | 91 | $23.78 | $11.89 |
|
|
| 47-295-1466 - In Line Fuse Assembly - 10480000 | 56 | $25.80 | $12.90 |
|
|
| 47-295-1462 - Terminal Block - R0097800 | 50 | $26.44 | $13.22 |
|
|
| 47-295-1436 - Pilot Tubing - R0037000 | 7 | $29.74 | $14.87 |
|
|
| 47-295-1526 - Main Burner - L0052300 | 16 | $37.00 | $18.50 |
|
|
| 47-295-1356 - Flange Gasket, 2'' - S0078000 | 77 | $37.00 | $18.50 |
|
|
| 47-295-1432 - Burner, w/ Pilot Bracket - 10457500 | 5 | $37.64 | $18.82 |
|
|
| 47-295-1488 - Header Gasket (O'rings) pack of 18 - R0050800 | 74 | $40.30 | $20.15 |
|
|
| 47-295-1140 - Rocker Switch (ALT) - R0099800 | 21 | $41.58 | $20.79 |
|
|
| 47-319-1200 - 3902 Univ. Pressure Switch w/Brass Fittings - 3902 | 38 | $44.20 | $22.10 |
|
|
| 47-295-1494 - By Pass Valve Cap - S0069100 | 90 | $48.36 | $24.18 |
|
|
| 47-295-1492 - Bypass Valve Rod Kit - R0391800 | 88 | $49.52 | $24.76 |
|
|
| 47-295-1430 - Ceramic Insulator Assembly - R0011600 | 4 | $50.86 | $25.43 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 | 70 | $52.82 | $26.41 |
|
|
| 47-295-1490 - By Pass Assembly, 2'' - R0054900 | 87 | $60.12 | $30.06 |
|
|
| 47-295-1268 - High-Limit Switch, 135_ F R0022700 | 42 | $68.66 | $34.33 |
|
|
| 47-295-1270 - High-Limit Switch, 150_ F R0023000 | 43 | $68.66 | $34.33 |
|
|
| 47-295-1200 - Flange, 2'' - 10573500 | 76 | $105.70 | $52.85 |
|
|
| 47-295-1318 - Transformer - R0061100 | 54 | $106.32 | $53.16 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 | 39 | $116.86 | $58.43 |
|
|
| 47-295-1428 - Pilot Generator - W0036901 | 3 | $119.44 | $59.72 |
|
|
| 47-295-1414 - Temperature Sensor - R0011800 | 27 | $161.00 | $80.50 |
|
|
| 47-295-1442 - Hot Surface Igniter - R0317200 | 10 | $179.46 | $89.73 |
|
|
| 47-295-1426 - Pilot Burner, LP - R0096600 | 2 | $210.50 | $105.25 |
|
|
| 47-295-1424 - Pilot Burner, Natural - R0096700 | 2 | $210.50 | $105.25 |
|
|
| 47-104-2280 - IGNITION CONTROL LLD - R0325200 USE 47-104-4081 - R0325200 USE 47-104-4081 | 52 | $278.86 | $139.43 |
|
|
| 47-295-1652 - Temperature Control - R0058200 | 18 | $290.98 | $145.49 |
|
|
| 47-295-1354 - Flange and Gasket Assembly (Set of 2) - R0055000 | 75 | $314.72 | $157.36 |
|
|
| 47-295-1474 - Return Header - R0058300 | 69 | $340.46 | $170.23 |
|
|
| 47-295-1448 - Gas Valve, Natural - R0317100 | 13 | $506.76 | $253.38 |
|
|
| 47-295-1412 - Temp Control Assembly - R0011700 | 23 | $652.52 | $326.26 |
|
|
| 47-295-1476 - Return Header, Bronze - R0054600 | 69 | $707.74 | $353.87 |
|
|
| 47-295-1470 - Inlet/Outlet Header, 2'' - R0056400 | 68 | $873.52 | $436.76 |
|
|
| 47-295-1446 - Gas Valve, LP - R0096900 | 13 | $957.74 | $478.87 |
|
|
| 47-295-1444 - Gas Valve, Natural - R0096400 | 13 | $957.74 | $478.87 |
|
|
| 47-295-1506 - Heat Exchanger Tube Assembly, 125 - R0018101 | 93 | $1,429.98 | $714.99 |
|
|
| 47-295-1472 - Inlet/Outlet Header, Bronze, 2'' - R0016800 | 68 | $1,605.00 | $802.50 |
|
|
| 47-295-1508 - Heat Exchanger Tube Assembly, 175 - R0018102 | 93 | $1,686.94 | $843.47 |
|
|
| 47-295-1510 - Heat Exchanger Tube Assembly, 250 - R0018103 | 93 | $1,958.62 | $979.31 |
|
|
| 47-295-1512 - Heat Exchanger Tube Assembly, 325 - R0018104 | 93 | $2,229.10 | $1,114.55 |
|
|
| 47-295-1514 - Heat Exchanger Tube Assembly, 400 - R0018105 | 93 | $2,500.74 | $1,250.37 |
|
