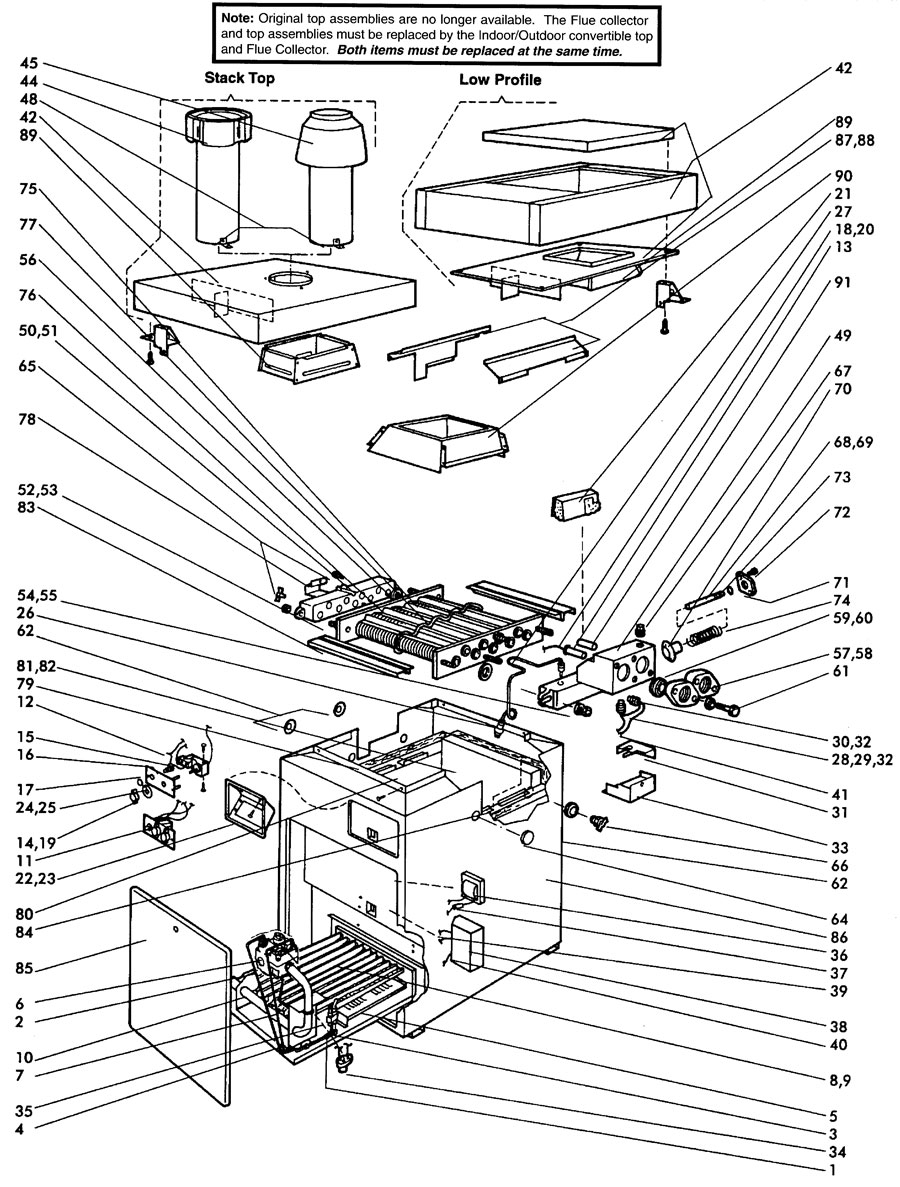

Swimming Pool Heater - Waterpik Laars XE Series ES, ES II, EC Heaters
| Item | Key | Retail | Price | Quantity | |
| 47-295-1126 - O-Ring, Seal (O-165) - E0036300 | 18 | $3.22 | $1.61 |
|
|
| 47-295-1484 - Nut, 3/8 - 16, Hex - F0003100 | 55 | $3.34 | $1.67 |
|
|
| 47-295-1482 - Washer, Plain, 3/8'' - F0011100 | 54 | $3.34 | $1.67 |
|
|
| 47-295-1450 - TEMP-LOK Stop Plate - 10583100 | 24 | $3.34 | $1.67 |
|
|
| 47-295-1416 - Temp Control Bulb ''O''-Ring - E0116400 | 20 | $3.98 | $1.99 |
|
|
| 47-295-1760 - Bolt, Hex-Head 3/8'', 16 x 1'' - F0041600 | 72 | $4.64 | $2.32 |
|
|
| 47-295-1480 - Dome Bolt, 2-½'' - F0046100 | 53 | $4.64 | $2.32 |
|
|
| 47-295-1522 - Gas Orifice, Natural, 0K to 3K Ft. - L0032200 | 7 | $5.32 | $2.66 |
|
|
| 47-295-1120 - Thermostat Sleeve - 10444900 | 21 | $5.32 | $2.66 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 | 70 | $10.60 | $5.30 |
|
|
| 47-295-1458 - High Limit Switch Retainer Clip - 10728500 | 31 | $10.60 | $5.30 |
|
|
| 47-295-1460 - High Limit Switch Retainer Boot - S0098900 | 32 | $11.90 | $5.95 |
|
|
| 47-295-1118 - Thermostat Knob - R0010700 | 19 | $12.56 | $6.28 |
|
|
| 47-295-1626 - By Pass Valve Rod - S0079800 | 69 | $13.24 | $6.62 |
|
|
| 47-295-1504 - By Pass Spring, 2” Header, Black, 400 - S0070100 | 74 | $15.88 | $7.94 |
|
|
| 47-295-1316 - Fusible Link (ALT) - R0012200 | 34 | $21.84 | $10.92 |
|
|
| 47-295-1418 - Knob, Single Bar - R0099900 | 14 | $21.84 | $10.92 |
|
|
| 47-295-1660 - By Pass Kit comes with threaded brass rod and plunger - R0013100 | 68 | $22.48 | $11.24 |
|
|
| 47-295-1502 - By Pass Spring, Blue - S0061200 | 74 | $23.20 | $11.60 |
|
|
| 47-295-1500 - By Pass Spring, Red - S0061300 | 74 | $23.20 | $11.60 |
|
|
| 47-295-1498 - By Pass Spring, White (EG-175) - S0061400 | 74 | $23.20 | $11.60 |
|
|
| WW4174010 - Union Tail Piece 1 1/2ins - WW4174010 | 75 | $19.99 | $11.98 |
|
|
| 47-295-1324 - Fuse, 1 ¼ Amp (5 Pcs) - R0012300 | 37 | $29.06 | $14.53 |
|
|
| 47-295-1436 - Pilot Tubing - R0037000 | 2 | $29.74 | $14.87 |
|
|
| 47-295-1742 - High Voltage Lead Assembly (H/W Cntrls S86E or F) - R0012100 | 40 | $33.72 | $16.86 |
|
|
| 47-295-1526 - Main Burner - L0052300 | 8 | $37.00 | $18.50 |
|
|
| 47-295-1432 - Burner, w/ Pilot Bracket - 10457500 | 9 | $37.64 | $18.82 |
|
|
| 47-295-1488 - Header Gasket (O'rings) pack of 18 - R0050800 | 56 | $40.30 | $20.15 |
|
|
| 47-319-1201 - 3925 Univ. Pressure Switch W/Brass Fittings (ALT) - 3029P | 26 | $45.40 | $22.70 |
|
|
| 47-295-1494 - By Pass Valve Cap - S0069100 | 71 | $48.36 | $24.18 |
|
|
| 47-295-1430 - Ceramic Insulator Assembly - R0011600 | 3 | $50.86 | $25.43 |
|
|
| 47-319-1063 - Pressure Switch, 25A, SPNO, 1/8in NPT, 1-10 PSI - 3035 | 26 | $51.82 | $25.91 |
|
|
| 47-295-1478 - Header Bolt Kit - R0057000 | 52 | $52.82 | $26.41 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16" Comp - 3064 | 26 | $67.58 | $33.79 |
|
|
| 47-295-1268 - High-Limit Switch, 135_ F R0022700 | 29 | $68.66 | $34.33 |
|
|
| 47-295-1270 - High-Limit Switch, 150_ F R0023000 | 30 | $68.66 | $34.33 |
|
|
| 47-295-1622 - Flange, 1-1/2'' - S0053300 | 58 | $92.46 | $46.23 |
|
|
| 47-295-1318 - Transformer - R0061100 | 36 | $106.32 | $53.16 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 | 27 | $116.86 | $58.43 |
|
|
| 47-295-1600 - Pilot Burner/Electrode, NAT, IID - R0061600 | 1 | $152.48 | $76.24 |
|
|
| 47-295-1414 - Temperature Sensor - R0011800 | 13 | $161.00 | $80.50 |
|
|
| 47-295-1630 - Pilot Burner, LP - R0027600 | 73 | $176.82 | $88.41 |
|
|
| 47-295-1658 - Flange Kit XE & Series 1 - R0031900 | 57 | $231.56 | $115.78 |
|
|
| 47-295-1112 - Temp Control Kit, Mech Replacement, Elektra II - R0318800 | 15 | $290.98 | $145.49 |
|
|
| 47-295-1474 - Return Header - R0058300 | 50 | $340.46 | $170.23 |
|
|
| 47-295-1614 - Ignition Control - R0011900 | 38 | $498.86 | $249.43 |
|
|
| 47-295-1708 - Gas Valve, Natural (250 - 400), IID - R0099400 | 6 | $537.82 | $268.91 |
|
|
| 47-295-1606 - Gas Valve, Natural, 125-175, IID - R0039200 | 6 | $537.82 | $268.91 |
|
|
| 47-295-1618 - Inlet/Outlet Header - R0058400 | 49 | $627.28 | $313.64 |
|
|
| 47-295-1412 - Temp Control Assembly - R0011700 | 11 | $652.52 | $326.26 |
|
|
| 47-295-1476 - Return Header, Bronze - R0054600 | 51 | $707.74 | $353.87 |
|
|
| 47-295-1506 - Heat Exchanger Tube Assembly, 125 - R0018101 | 75 | $1,429.98 | $714.99 |
|
|
| 47-295-1510 - Heat Exchanger Tube Assembly, 250 - R0018103 | 75 | $1,958.62 | $979.31 |
|
|
| 47-295-1512 - Heat Exchanger Tube Assembly, 325 - R0018104 | 75 | $2,229.10 | $1,114.55 |
|
|
| 47-295-1514 - Heat Exchanger Tube Assembly, 400 - R0018105 | 75 | $2,500.74 | $1,250.37 |
|
