Swimming Pool Heaters - Waterpik Laars HI-E2 Heater (Mfg 1997-pres)

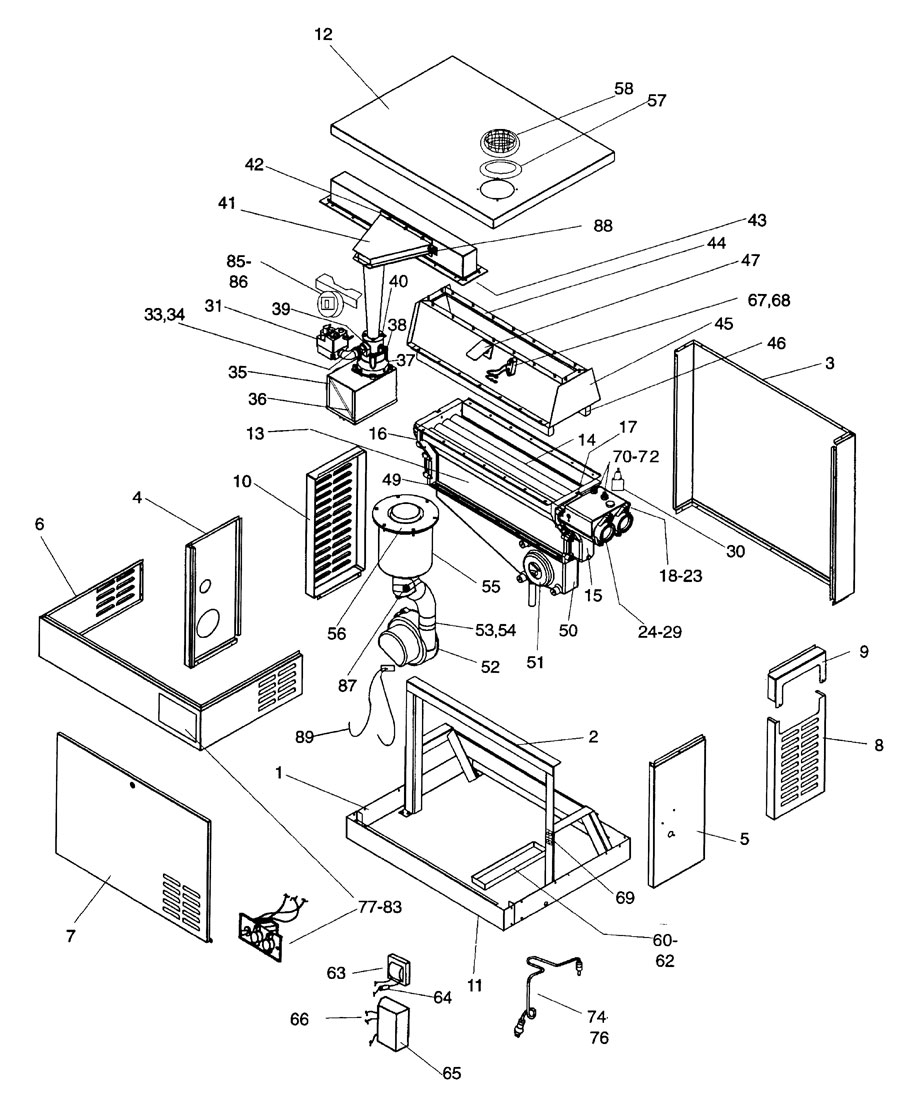

%20--%20Blow%20Up.jpg)
| Item | Key | Retail | Price | Quantity | |
| 47-295-1416 - Temp Control Bulb ''O''-Ring - E0116400 | 77 | $3.98 | $1.99 |
|
|
| 47-295-1282 - By Pass Valve Gasket - R0011400 | 20 | $5.30 | $2.65 |
|
|
| 47-295-1120 - Thermostat Sleeve - 10444900 | 77 | $5.32 | $2.66 |
|
|
| 47-295-1276 - By Pass Valve Disc - R0011500 | 23 | $10.60 | $5.30 |
|
|
| 47-295-1372 - Venturi O-Ring - R0320400 | 38 | $10.60 | $5.30 |
|
|
| 47-295-1360 - Flange Gasket, 1 ½''-2'' - S0078100 | 24 | $11.30 | $5.65 |
|
|
| 47-295-1292 - Flange Sleeve, 2'' - S0078200 | 24 | $12.56 | $6.28 |
|
|
| 47-295-1118 - Thermostat Knob - R0010700 | 77 | $12.56 | $6.28 |
|
|
| 47-295-1352 - Bypass Valve Rod - R0304900 | 22 | $15.86 | $7.93 |
|
|
| 47-295-1418 - Knob, Single Bar - R0099900 | 77 | $21.84 | $10.92 |
|
|
| 47-295-1402 - Terminal Block - R0301900 | 69 | $22.99 | $11.49 |
|
|
| 47-295-1374 - Venturi/Tailpipe Gasket - R0320600 | 40 | $23.80 | $11.90 |
|
|
| 47-295-1370 - Combustion Air Filter - R0308000 | 36 | $23.80 | $11.90 |
|
|
| 47-295-1466 - In Line Fuse Assembly - 10480000 | 64 | $25.80 | $12.90 |
|
|
| 47-295-1376 - Mixing Chamber/Burner Gasket - R0320800 | 42 | $27.12 | $13.56 |
|
|
| 47-295-1420 - Exhaust Vent Limit Switch - R0309000 | 87 | $27.76 | $13.88 |
|
|
| 47-295-1422 - Burner HiLimit Switch - R0319700 | 88 | $35.70 | $17.85 |
|
|
| 47-295-1356 - Flange Gasket, 2'' - S0078000 | 24 | $37.00 | $18.50 |
|
|
| 47-295-1394 - Blower Collector Gasket - R0308700 | 51 | $41.58 | $20.79 |
|
|
| 47-295-1382 - Burner/CombustionChamber Gasket - Model 350 - R0305805 | 44 | $46.88 | $23.44 |
|
|
| 47-295-1384 - Burner/CombustionChamber Gasket - Model 220 - R0305803 | 44 | $46.88 | $23.44 |
|
|
| 47-295-1350 - Bypass Valve Spring - R0304500 | 21 | $48.24 | $24.12 |
|
|
| 47-295-1218 - Igniter Gasket - R0205300 | 68 | $50.86 | $25.43 |
|
|
| 47-295-1366 - Gas Orofice, LPG - Model 220 - R0309403 | 34 | $52.36 | $26.18 |
|
|
| 47-295-1368 - GasOrofice, LPG - Model 350 - R0309405 | 34 | $64.76 | $32.38 |
|
|
| 47-319-1027 - 3064 Pres. Sw., 25A, SPNO, 3/16" Comp - 3064 | 76 | $67.58 | $33.79 |
|
|
| 47-295-1362 - Gas Valve, Nat - Model 220 - R0309303 | 34 | $69.64 | $34.82 |
|
|
| 47-295-1364 - Gas Valve, Nat - Model 350 - R0309305 | 34 | $77.90 | $38.95 |
|
|
| 47-295-1200 - Flange, 2'' - 10573500 | 24 | $105.70 | $52.85 |
|
|
| 47-295-1318 - Transformer - R0061100 | 63 | $106.32 | $53.16 |
|
|
| 47-295-1682 - By Pass Assembly - R0304400 | 18 | $110.22 | $55.11 |
|
|
| 47-295-1392 - Collector - Model 220/350 - R0303300 | 50 | $114.88 | $57.44 |
|
|
| 47-295-1454 - Siphon Loop Assembly Kit - R0057800 | 76 | $116.86 | $58.43 |
|
|
| 47-295-1404 - Hi Limit Switch Set (Hi-E2) - R0322700 | 70 | $123.40 | $61.70 |
|
|
| 47-295-1286 - By Pass Valve Cap, Bronze - S0076700 | 19 | $155.08 | $77.54 |
|
|
| 47-295-1414 - Temperature Sensor - R0011800 | 77 | $161.00 | $80.50 |
|
|
| 47-295-1388 - Combustion Chamber/Collector Gasket - Model 350 - R0305705 | 49 | $168.96 | $84.48 |
|
|
| 47-295-1216 - Ignitor Assembly - R0016400 | 67 | $179.46 | $89.73 |
|
|
| 47-295-1354 - Flange and Gasket Assembly (Set of 2) - R0055000 | 24 | $314.72 | $157.36 |
|
|
| 47-295-1412 - Temp Control Assembly - R0011700 | 77 | $652.52 | $326.26 |
|
|
| 47-295-1206 - Gas Valve - R0200100 | 31 | $889.30 | $444.65 |
|
|
| 47-295-1378 - Burner Assembly - Model 220 - R0305903 | 43 | $1,631.30 | $815.65 |
|
|
| 47-295-1380 - Burner Assembly - Model 350 - R0305905 | 43 | $1,973.30 | $986.65 |
|
|
| 47-295-1396 - Combustion Blower - R0308200 | 52 | $3,228.34 | $1,614.17 |
|
|
| 47-295-1670 - Heat Exchanger Complete-Model 220 - R0303803 | 14 | $4,202.42 | $2,101.21 |
|
|
| 47-295-1672 - Heat exchanger Complete- Model 350 - R0303805 | 14 | $4,411.20 | $2,205.60 |
|
